Non-Code Mild Steel Oval Truck Mount Tank

Non-Code Mild Steel Oval Truck Mount Tank

Description

MS Oval Non-Code

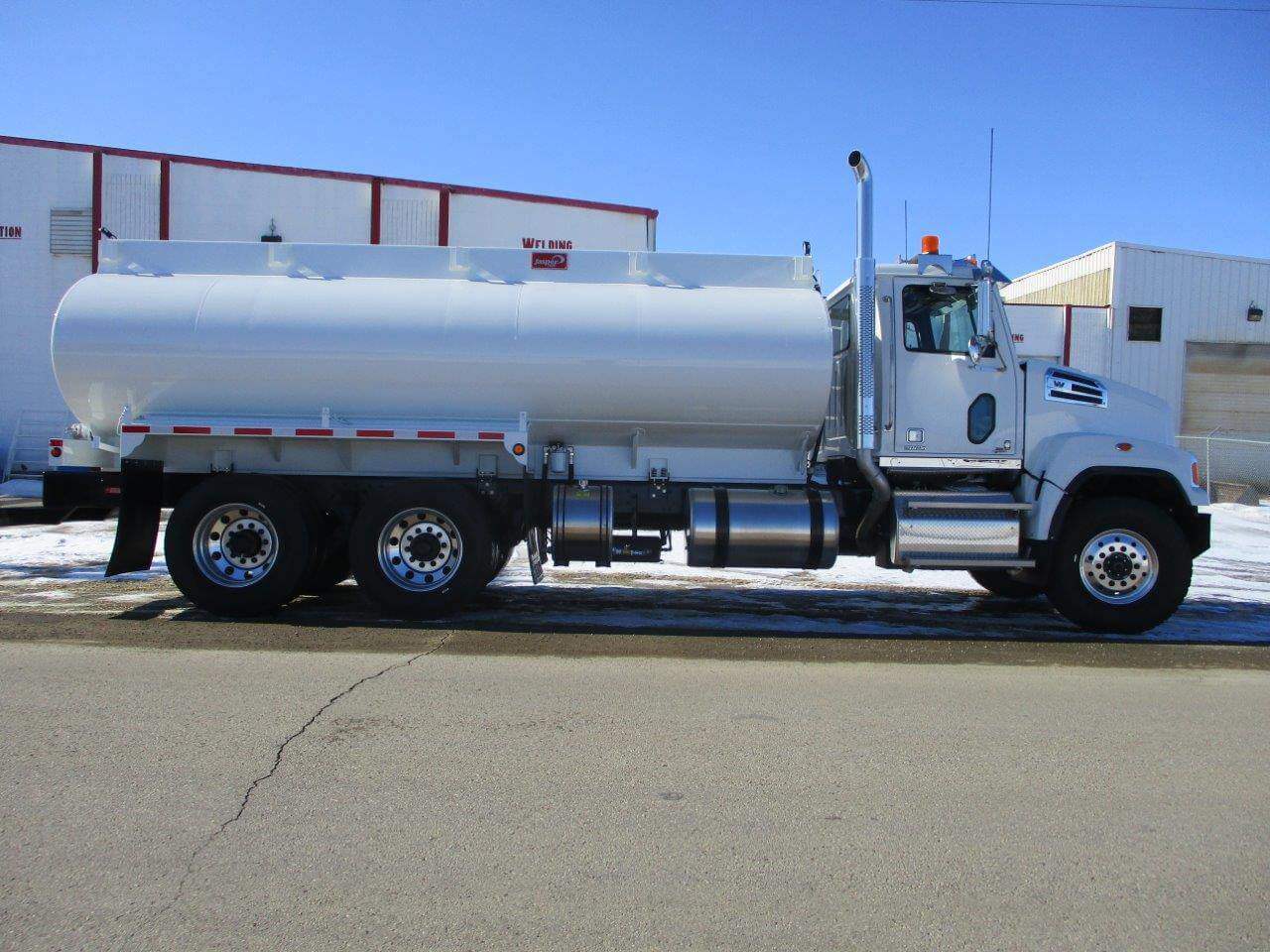

This tandem axle truck tank is a single compartment non-code unit for water service only. The 4” plumbing includes a 4” pump bypass and a 4” discharge exiting out the top of the cabinet. There is a gooseneck vent line that is vented to atmosphere. All air valves (sump) have switches inside the cab of the truck.



The truck comes equipped with:

Rear chain hangers

3” Flat Bar Hose Holders c/w cables and quick connects, 3 per side fender mounted c/w one large hose end holder installed front curb side of tank .

3” Rear Dump c/w manual valve, camlock and cap

DS Side float and provisions for a titan float level display upgrade

Cabinet Heater



Work lights are included and are located:

Front of the tank –top of the tunnel

Rear of the tank – Top of the tunnel both sides

Cabinet – LED Strip light

All Work lights and cabinet heater switches are located in cab



Specifications

Model: Non Code (Water)

Reference Number: 14582

Capacity: 16,500 +/-Litres

Compartments: One

Lighting: LED Work and Clearance Lights

Product Pump: 4” Bowie 4300 series

Valves: Flow Plus c/w Buna Seals, Air and Manual Actuated
