MS Oval TC 406 Trailer

MS Oval TC 406 Trailer

Description

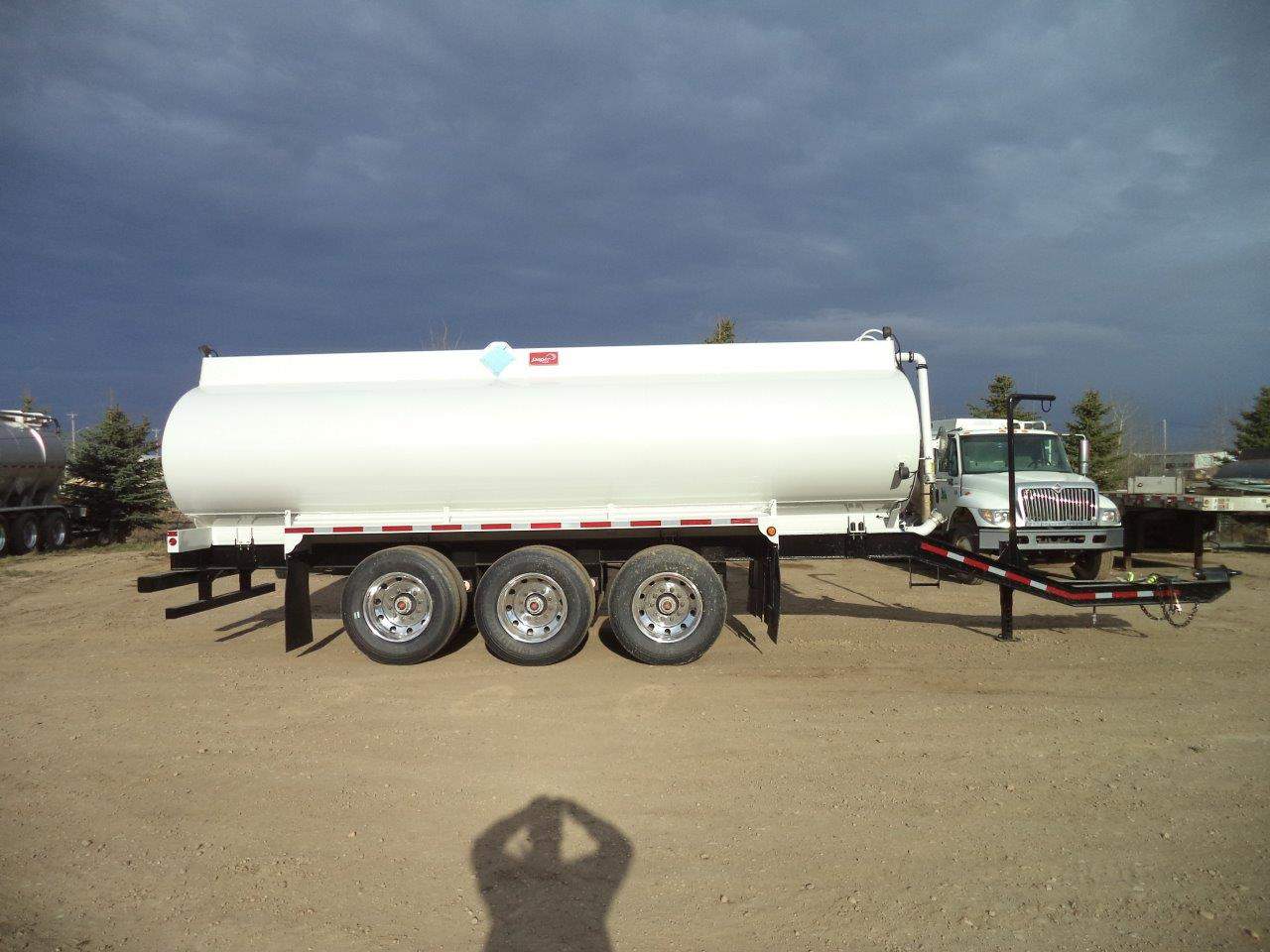

This Tridem axle stiff pole pup tank is a single compartment, TC406, Mild Steel tank. The 4″ plumbing includes 1 sump, and a discharge out the front of
the tank. The discharge includes 1 manual valve with drain. The 3″ ventline exiting at the front of the tank. The ventline includes an air to spring
valve and ends with a threaded end and camlock. All air switches are located in the DS switchbox.

The Trailer is equipped with:

2 front safety chains

7-way and a 4-way receptacle

3″ Double Flat Bar Hose Holders c/w tie-down loops, 4 per side fender mounted

Titan float level with display in switchbox

DS Side Float

Work lights are included and located:

Front of the tank: Mid height both sides and top of the tunnel

Rear of the tank: Top of the tunnel both sides

Specifications

  • Model: TC406
  • Reference Number: I-9268
  • Capacity: 22,000 +/- Litres
  • Compartments: None
  • Lighting: LED Work and Clearance Lights
  • Product Pump: None
