MS Oval Non-Code (TC406 Upgradeable)

MS Oval Non-Code (TC406 Upgradeable)

Description

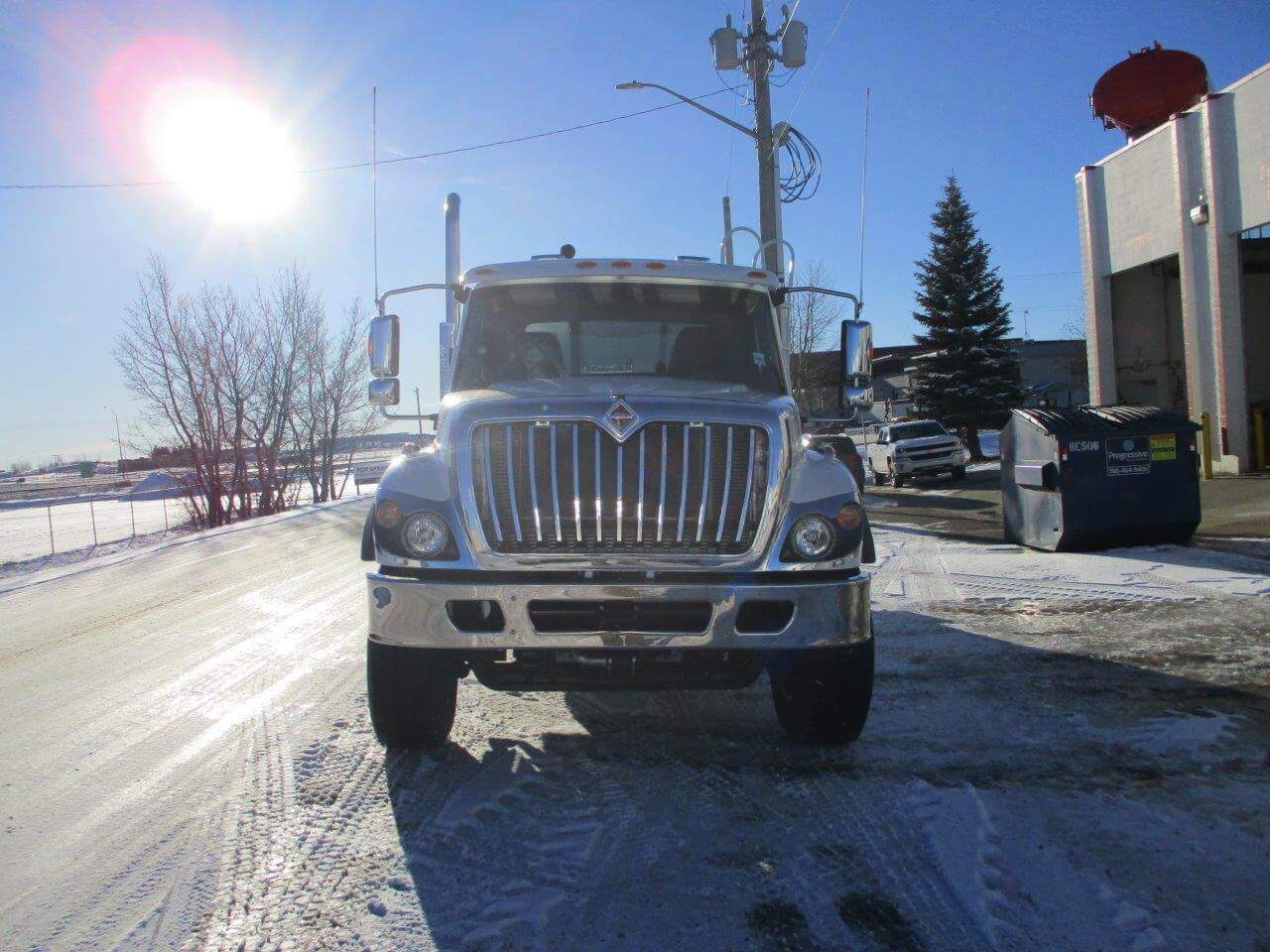

This tandem axle truck tank is a single compartment, mild steel, non-code unit with the capabilities to upgrade to a TC406 unit. The 4” plumbing includes a pump bypass, 3” discharge exiting out the top of the cabinet. A 4” rear dump is included to supply the spray bar bumper that comes with a 4” Air to Air Valve with the switch located in the cab of the truck. There also is an additional 4” valve for a dump if the rear spray bar is not required. The front sump and end dump are heated using the jasper tank style heat donut to ensure the valves will not freeze. There is a standard vent line that includes 1 Air to spring valve provision exiting the tank and a threaded end on the rear curbside of the tank.



The truck comes equipped with:

2 front tow hooks and a full doghouse hitch with a 7-way and 4-way electrical plugs

Rear chain hangers

Brackets for a folding handrail system

Flat bar hose hooks

DS Side float and provisions for a titan float level display upgrade

Cabinet Heaters in ds cabinet and storage box



Work lights are included and are located:

Front of the tank – Mid height both sides and top of the tunnel

Rear of the tank – Top of the tunnel both sides

Cabinet – LED Strip lighting

All Work lights and cabinet heater switches are located in cab



Specifications

Model: Non code (Water) upgradable to a TC406

Reference Number: 14518

Capacity: 16,500 +/- Litres

Compartments: One

Lighting: LED Work and Clearance Lights

Product Pump: 3” Bowie

Valves: Air and Manual Actuated, buna seals
